Shelly Wall Switch 2 White - 2-button wall switch for Shelly modules
This wall switch, for Shelly smart modules, allows for simpler installation of any of the compatible modules, in a typical switch box.

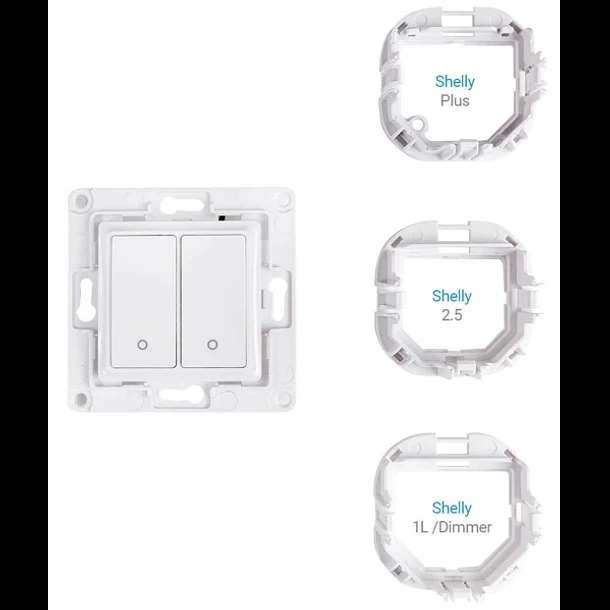

This 2-button switch comes with 3 snap-on brackets for different Shelly modules:
• Support 1: Shelly 2.5
• Support 2: Shelly Plus Series
• Support 3: Shelly 1L / Shelly Dimmer 2
SPECIFICATIONS:
• Make/model: Shelly SHWS2WH
• Type of buttons: momentary (pressure, monostable)
• Number of buttons: 2
• Maximum switching potential: 12V DC / 18V AC
• Maximum switching current: 50mA
• Operating temperature: -20°C to 70°C
• Operating humidity: up to 85%
• Compatible with:
- Shelly 2.5,
- Shelly Plus Series
- Shelly 1L,
- Shelly Dimmer 2
WIRES:
• Red: Power supply (common)
• Black: Switch 1
• Blue: Switch 2
NOTES:
• Shelly module not included;
• Frames/mirrors are sold separately;
• In addition to Shelly mirrors, there are other models on the market that are compatible with this switch, such as those from the Legrand Niloé series.
ATTENTION:
Shelly wall switches must be used in combination with Shelly devices or other similar devices. The potential difference across the switch must not exceed 12VDC and the current across the switch must not exceed 50mA. Therefore, never use these switches to directly switch 230V AC loads.
EAN: 3800235266199
