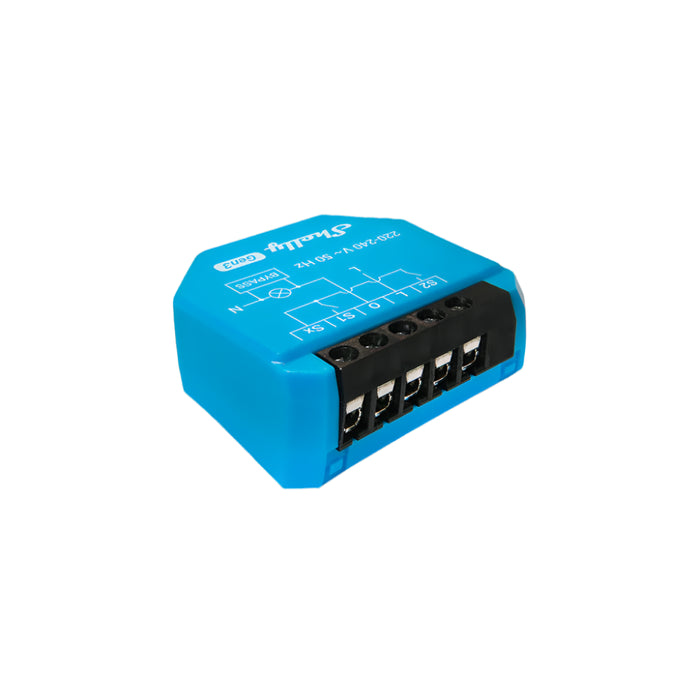

Shelly 1L Gen3 - 1-channel Wi-Fi automation switch module without neutral
📦 Deliveries within 24 business hours
Order before 3:30 pm and ensure delivery on the same business day.
Description
The Shelly 1L Gen3 is a single-channel smart switch designed specifically for lighting installations where there is no neutral wire. Compatible with most wall switches, it allows remote control of lighting without the need for electrical restructuring. Compact, versatile and easy to install, it integrates easily into home automation systems via Wi-Fi or Bluetooth. It includes overheating protection and allows OTA updates. The Shelly 1L Gen3 is Matter compatible and comes with a Shelly Bypass 1L/2L included to allow operation with LED loads.
MAIN FEATURES
● For intelligent lighting control up to 200W
● Works without neutral wire
● Comes with a Bypass (necessary for some lamps)
● Wi-Fi and Bluetooth control

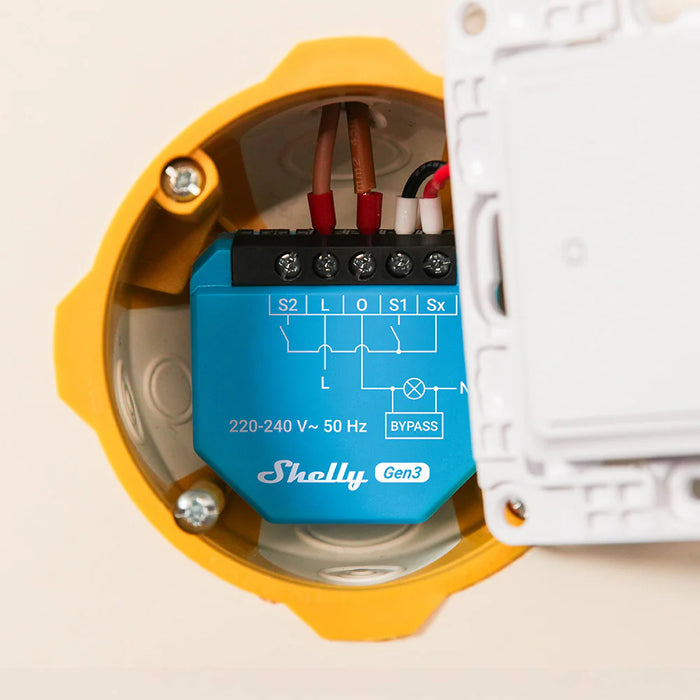

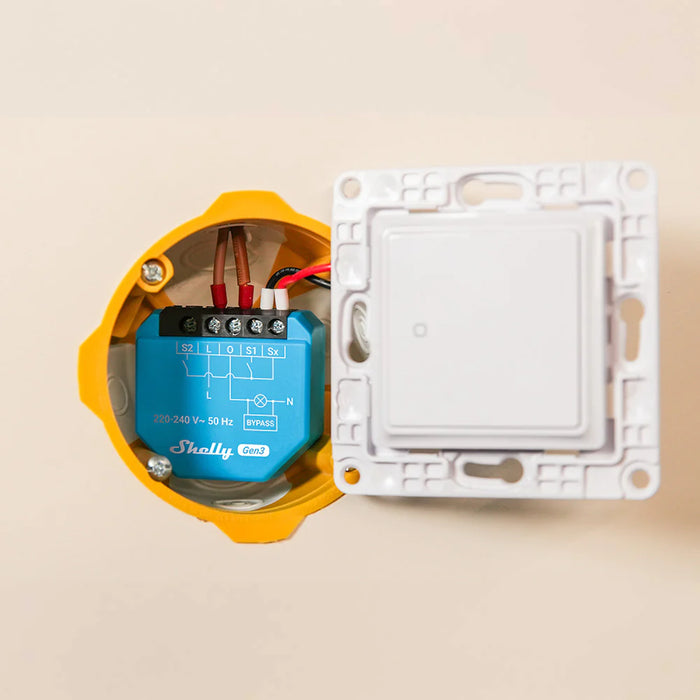

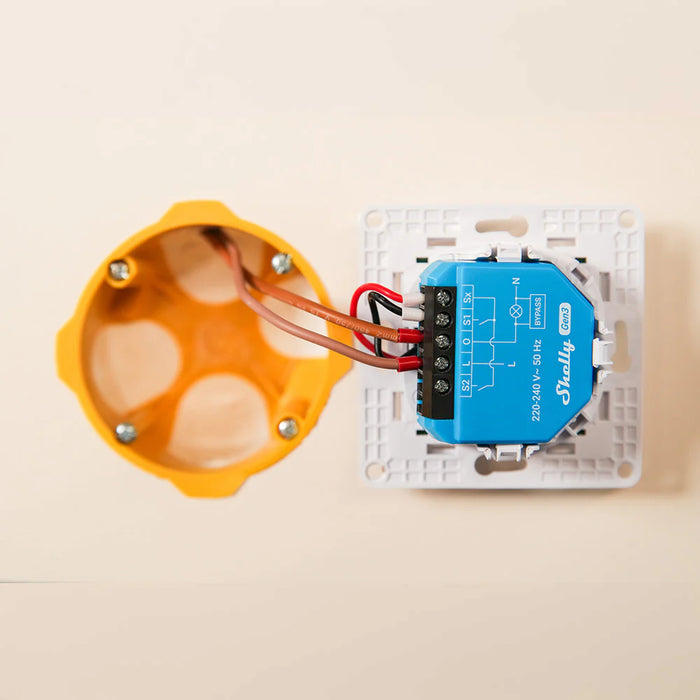

● Compact design for installation in switch boxes
● Compatible with Amazon Alexa, Google Assistant, SmartThings
● Supports scenes, schedules, and local actions
● Integration with MQTT, MQTTS, Web Sockets, HTTPS
● Internal temperature sensor for thermal protection
● Matter compatible (requires firmware update)
● Consumption less than 1.2 W
FEATURED FEATURES
✅ Smart control without neutral wire
The Shelly 1L Gen3 was developed to intelligently control a lighting load with a maximum power of 200W, in installations that do not have a neutral wire in the switch.

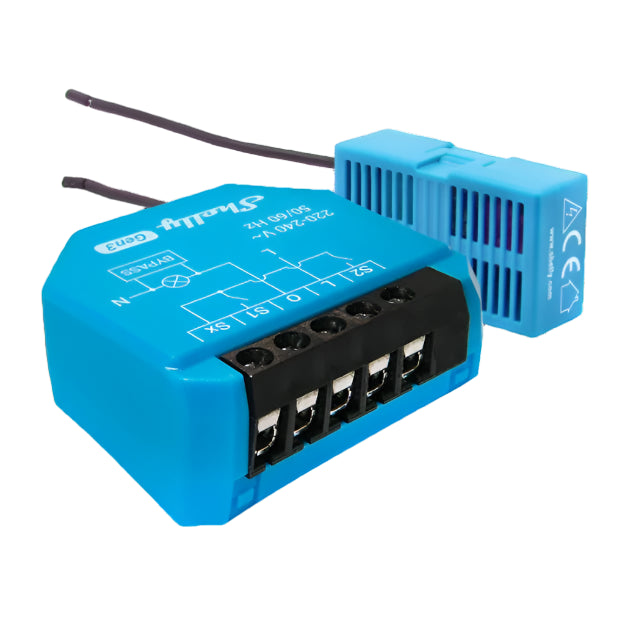

✅ Includes a Shelly Bypass 1L/2L Gen3

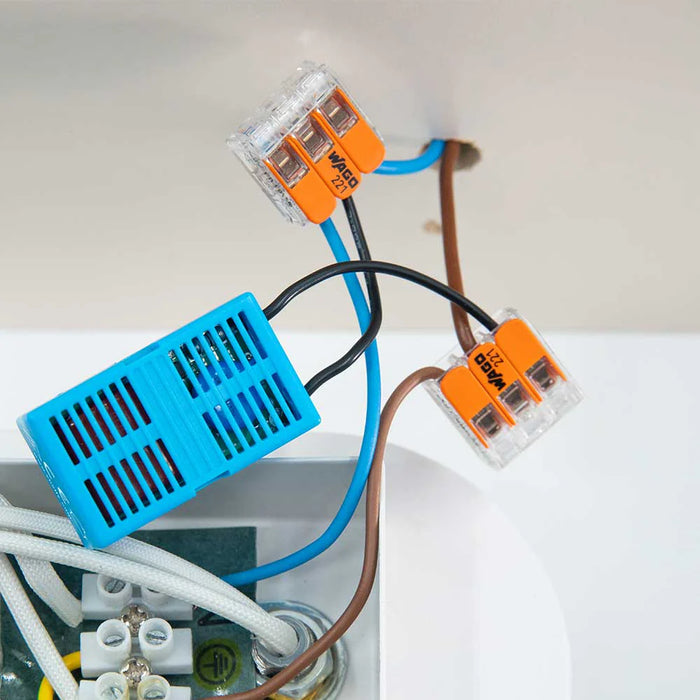

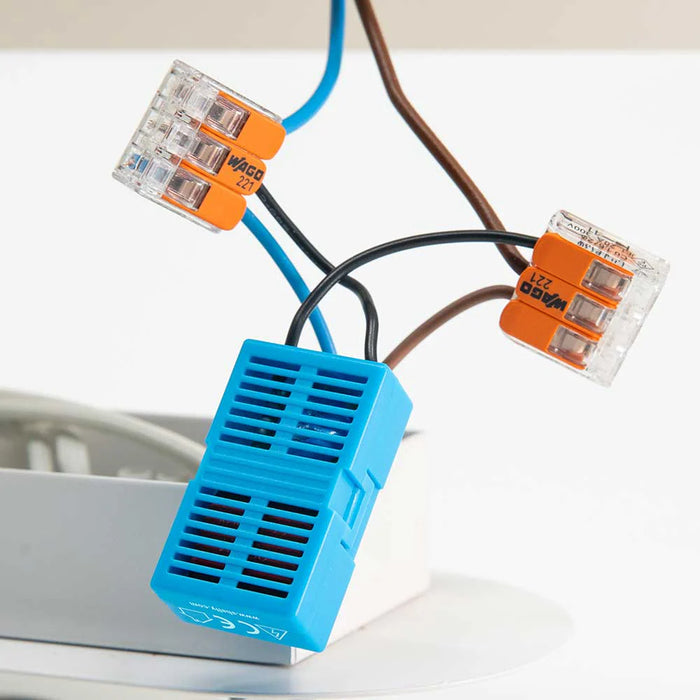

Using the Shelly Bypass, included in the package, it also allows you to control low-power LED loads with great reliability, without having to modify the existing wiring.
✅ Wi-Fi and Bluetooth connectivity
Wi-Fi connectivity ensures local and remote control without the need for an additional hub. Bluetooth facilitates initial setup and can act as a gateway for Shelly BLU sensors.
✅ Compatible with Matter and local automations
With support for the new Matter standard (via firmware update), Shelly 1L Gen3 offers greater interoperability with modern home automation platforms. It also supports local scenes, timers and offline control via Wi-Fi.
✅ Security and reliability
Equipped with a temperature sensor to detect overheating, the Shelly 1L Gen3 guarantees safe and reliable operation in residential environments, as long as it is installed correctly and protected by a 10 A circuit breaker (with curve B or C).
SPECIFICATIONS
◾ Electrical
- Power supply: 220–240 V\~ 50 Hz
- Consumption: < 1.2 W
- Maximum switching voltage: 240 V\~
- Maximum switching power: 200 W
- Recommended external protection: 10 A, curve B or C, energy class 3
- Neutral required: no
- Shelly Bypass (included)
· Not required for incandescent loads
· For LED loads, connect the bypass directly to the load
◾ Electrical interfaces
- Inputs:
· 1 switch input (terminal S)
· 1 power input (terminal L)
- Outputs:
· 1 relay output (terminal O)
· 1 control signal (Sx terminal)
◾ Connectivity
- Wi-Fi: 802.11 b/g/n, 2.4 GHz (2401–2495 MHz), < 20 dBm
- Bluetooth: 4.2 (2400–2483.5 MHz), < 4 dBm
- Wi-Fi range: up to 30 m (indoor), 50 m (outdoor)
- Bluetooth range: up to 10 m (indoor), 30 m (outdoor)
◾ Platform compatibility
- Alexa, Google Assistant, Samsung SmartThings
- MQTT, Home Assistant, Node-RED
◾ Supported load types
- Incandescent lamps
- LED lamps (without transformer)
◾ Processing
- CPU: ESP-Shelly-C38F, 160 MHz
- RAM: 512 KB
- Flash: 8 MB
◾ Firmware and automation
- Appointments: up to 20
- Webhooks: 20 (with up to 5 URLs each)
- Scripting support: Yes
- MQTT/MQTTS support: Yes
- Web Sockets support: Yes (input and output)
- HTTPS support: Yes
◾ Operating environment
- Ambient temperature: -20ºC to 40ºC
- Humidity: 30% to 70% RH
- Maximum altitude: 2000 m
◾ Dimensions and construction
- Size: 37 x 42 x 16mm ±0.5mm
- Weight: 24 g
- Case material: Plastic (cyan color)
- Mounting: Recessed in wall
PACKAGE CONTENTS
◾ Shelly 1L Gen3
◾ Shelly Bypass 1L/2L Gen3
◾ Installation manual
NOTES
◾ The Shelly 1L Gen3 is prepared to use the Matter protocol, but to use this functionality it is necessary to update the firmware.
◾ Although it works with incandescent loads without the Bypass, this is always necessary for LED lighting.
◾ Does not support low-voltage LED lighting power supplies (may cause unstable behavior or relay failure).
EAN: 3800235261637
